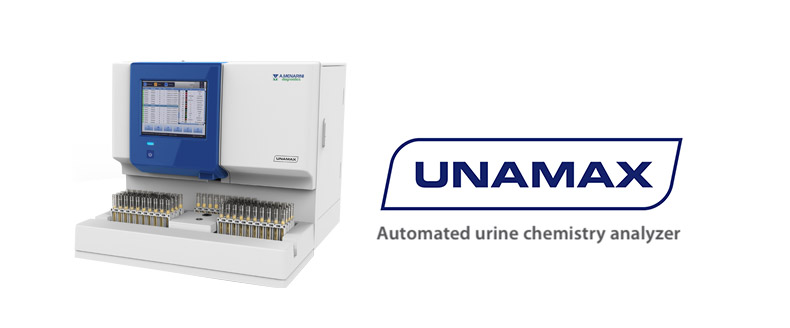

UNAMAX is the new A. Menarini Diagnostics urine chemistry analyzer that offers a fully automated approach, maximum productivity and improved analytical performance. UNAMAX can evaluate up to 14 chemical parameters, including ascorbic acid, creatinine, microalbumin, and calcium, as well as 5 physical parameters using the physical and the conductivity modules, to deliver high-quality, accurate results. UNAMAX has a throughput of 360 samples/hour and has an easy-to-use 10.4-inch color touchscreen that displays the real strip image for review. The system is equipped with automatic RFID rack recognition for better sample traceability. The constant temperature control ensures the best reaction environment and avoids temperature interference. Pediatric mode available with 0,6ml minimum sample and pediatric RFID rack recognition.

- Fully automated - Contact image sensors (CIS) scanning technology with 5 wavelengths for greater accuracy and efficiency -
- Low sample volume needed (at least 2ml with standard mode or 0,6 ml with pediatric mode) with liquid level detection sensor
- Precise sample dropping technology - Automatic enhanced washing for high concentration samples
- Constant temperature control to avoid interference - Automated quality control analysis and maintenance procedures

• High throughput: 360 samples/hour
• Strip loading capacity: 500 strips
• RFID rack reader

• Up to 14 chemical parameters, including ascorbic acid, creatinine, microalbumin, and calcium
• Albumin-to-creatinine ratio (ACR) to identify early-stage kidney disease and Protein-to-creatinine ratio (PCR)

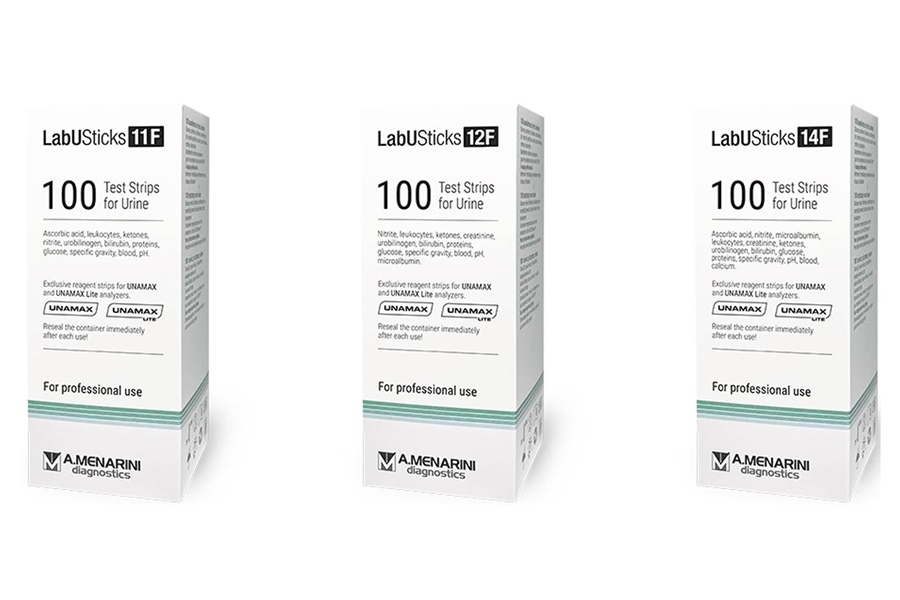

• 3 different types of strips available (LabUSticks 11F, 12F and 14 F )
• Physical module ensuring accurate specific gravity, turbidity, and color results
• Conductivity module to provide conductivity and osmolality results.

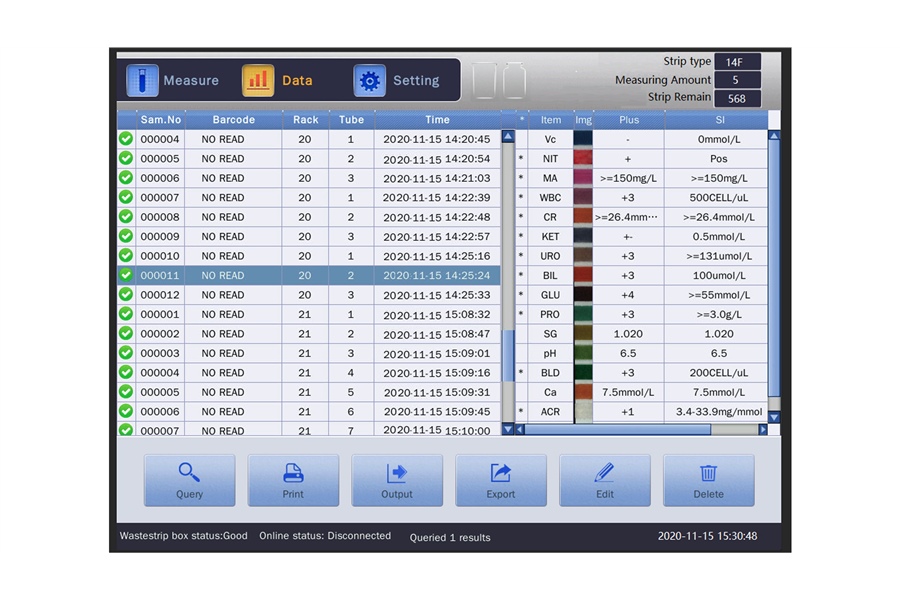

• Real-time strip reaction color for reviewing EASE OF USE AND LIS INTEGRATION
• User-friendly software and easy-to-use 10.4-inch color touchscreen
• Integration with laboratory or hospital information systems
