Unamax Lite

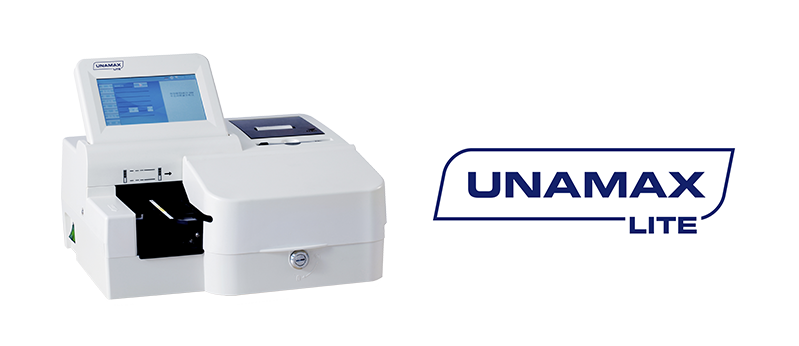

UNAMAX LITE is the new A. Menarini Diagnostics semi-automated chemistry analyzer designed for medium-sized laboratories. The instrument can analyze up to 6 different types of strips and determine parameters like ascorbic acid, creatinine, microalbumin and calcium. It can also calculate the albumin-to-creatinine ratio to identify kidney disease. The advanced contact image sensors (CIS) system with five wavelengths ensures high accuracy, efficiency and trustworthy results.

Key Features
  • Ideal for medium-sized laboratories
  • Up to 600 tests/hour throughput
  • Wide range of testing options using six different strip types
  • Contact image sensors (CIS) technology with 5 wavelengths
  • Ability to test parameters like ascorbic acid, creatinine, microalbumin and calcium
  • Ability to measure the albumin-to-creatinine ratio
  • Easy operation using the 7-inch color touchscreen
  • Real image display for easy review
BROCHURE AVAILABLE HERE
Download the pdf
TECHNOLOGY

Reflectance photometry at 470, 520, 570, 620, 730 nm wavelengths

EVALUATED
PARAMETERS

Ascorbic acid, nitrite, microalbumin, leucocytes, creatinine, ketones, urobilinogen, bilirubin, glucose, proteins, pH, blood, calcium, albumin-to-creatinine, specific gravity, color, protein-to creatinine

Throughput

Up to 600 tests/hour in continuous test mode

Memory

9999 patient test results

Display

7-inch LCD color touchscreen display

Printer

Built-in thermal printer

Size

440 x 360 x 220 mm (L x W x H)

Weight

8.5 kg

Input

100-240V AC / 50-60 Hz

Interfaces

 Serial port (RS232), parallel port (external printer), PS/2 (bar code reader), USB port (data output)

Operiting conditions

15-30°C, RH≤80% (Recommended)

List of product codes:

52159 UNAMAX Lite

52160 LabUSticks 11F (LEU, KET, NIT, URO, BIL, GLU, PRO, SG, PH, BLD, ASC)

52164 LabUSticks 12F (LEU, KET, NIT, URO, BIL, GLU, PRO, SG, PH, BLD, MALB, CRE)

52163 LabUSticks 14F (LEU, KET, NIT, URO, BIL, GLU, PRO, SG, PH, BLD, ASC, MALB, CRE, CA)

52240 LabUSticks 10G (LEU, KET, NIT, URO, BIL, GLU, PRO, SG, PH, BLD)

52241 LabUSticks 11G (LEU, KET, NIT, URO, BIL, GLU, PRO, SG, PH, BLD, ASC)

52242 LabUSticks 14G (LEU, KET, NIT, URO, BIL, GLU, PRO, SG, PH, BLD, ASC, MALB, CRE, CA)

52171 UNAMAX U11 Control

52172 UNAMAX U14 Control
